Storage Devices. Part 1
1 Watch the video and put the words
into the gaps in the text
Let’s start with talking about these (1)___ drives, and that’s what
FDD stands for, and you really don’t see floppy drives much anymore, they are
technology that (2)___ many years have changed from these eight (3)___ disks
that you see here to five and a quarter-inch and lastly three-and-a-half inch
that were popular most recently. But it’s even hard now to find a new machine
that has these floppy drives in them. Usually it says you have to get a USB
(4)___ drive and just connect it that way so that you’re able to read and
write floppy drives that you might have if you don’t have them in a system
already. And if you look at a floppy drive you can see it’s pretty big, it’s
three-and-a-half inches that’s why we get that size, and it can fit one point
four four (5)___. That’s megabytes, that’s not gig, that’s one point four meg
on a single disk. Obviously the very small USB keys that we use today, those
(6)___ drives, store gigabytes and gigabytes of data, so you can see now why
floppy disk drives really aren’t used much any more.
If you run into a (7)___ machine that probably has a floppy drive in
there and you may run it in some situations where people have piles of these
floppy drives sitting around, floppy disks sitting around with good (8)___ on
them, documents they might need. If they do, you may want to work on
migrating them over to another type of (9)__ medium as quickly as possible
because it’s becoming more and more difficult to even find (10)___ disk
drives out there in the wild with these new machines.
When we think about storage on almost all machines today it’s hard
drive. It’s hard disk drive that people are using to (11)___ data. Hard disk
drives come in some pretty standard formats. The drives that you’ll see
inside of the machine are these three-and-a-half inch drives that you might
see. There are three different (12)___ of drives that you might see inside of
your machine, these happen to be different formats: there is a SATA drive
which is here on the top, there is a PATA drive here in the middle, at the
bottom is this SCSI which isn’t necessarily mentioned on the latest version
of the CompTIA + certification
(13)___, but I have this picture anyway. I thought I’ll show you the
differences between these interfaces and all three. And so that’s one way you
can look at a drive and see what kind of drive it is, but notice all are of
the same (14)___ so I could put them into the same type of structure inside
of my computer, they’ll (15)___ inside exactly the same rack even if it’s
SATA or PATA or SCSI doesn’t matter. They’ll still fit in the same form
factor. These drives themselves and their (16)___ do look a little bit
differently and they work completely differently between these different
drive types even though they use exactly the same form (16)___.
The SATA drive, the PATA drive and the SCSI drives have completely
different technologies that are used on the drive and on the (17)___ or drive
controller of your system. So you can’t (18)___ out a PATA for a SATA and
(19)___, they’re very different drives in their technology and in how they work.
The latest technologies of drives went into something called ‘(20)___ drives’
where you don’t have these moving parts, these (21)___ that would spin and
arms that would come out and read data like an old record player. Instead our
latest kind of drives are these memory only drives, the type of information
there, there’s no moving parts whatsoever, it’s all solid state technology,
it’s all memory chips and the
controllers that read the data from memory.
And because of that they’re very very fast methods of (22)___ data and
retrieving data but they’re also very expensive when you compare it on a per
gigabyte basis. There might be hundreds and hundreds and hundreds of dollars
to buy an SSD drive where I could spend exactly the same amount of money for
a traditional hard drive and have ten times the space (23)___ on the system.
So you’ll see the prices of SSD drives will drop as time goes on, eventually
we may move everything over to SSD drives. But in the (24)___ we’ve got a
choice we could buy machines that have SSD drives that are expensive and don’t
have a lot of space or we have the traditional hard drives which have a lot
of space on them are not quite as (25)___ but slower technologies in the way
that they work.

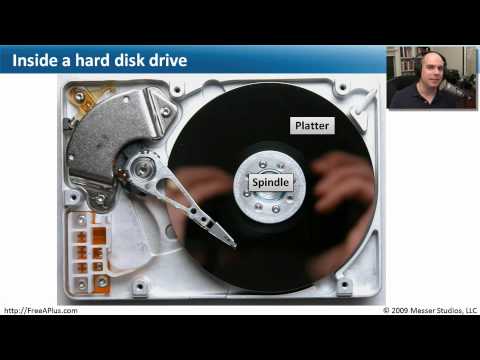

Let’s look inside a disk, a hard drive itself, and look at the (26)___
inside of it and see how these things are really made up. Hard drives
themselves have a lot of different components to them. This platter that’s
here is something that just spins, it is magnetic type technology that’s used
to store data (27)___ on this platter. And normally you don’t see it like
this, normally it is contained all within a single place, there’s a cover
that goes over the top and there’s a very filtered air flow that goes between
all of the system so no dust or anything can get inside of this (28)___
because that platter has on top of it this (29)___ that’s (30)___ around and
there’s not a lot of room between the head that’s on that platter reading the
data. Dust and anything that gets in their can create a problem with reading,
so it’s a very clean environment inside of your hard drive. Once you take the
top off - hard drive’s no good anymore. And it spins at different speeds:
fifty four hundred (31)___ per minute or seven seventy two hundred
revolutions per minute or even ten thousand revolutions per minute, different drives spin at different rates,
generally the faster it spins the faster the access of the data is going to
be.
What you also have on the drive is something called an (32)___. This
is in charge of moving this (33)___ back and forth across the dry platter
itself so that you can access data. That arm at the end of it has a head and
that head is what is responsible for reading these magnetic ones and zeros
that are being written on to this platter. And so the platter’s spinning and
the actuator’s causing the arm to go back and forth and back and forth to
read that data all the time. You can see now why a solid state drive, where
you’re immediately (34)___ data, would naturally be a lot faster. But this
hard drive technology has been around for so long, it’s incredibly (35)___
and it is able to store so much information in such a small place that’s
really the primary form of data storage that we have on our computers
today.
Here’s a (36)___ version of that drive. You can see it looks like a
head is really sitting right on top of the platter and if the platter isn’t
spinning, that’s really what it’s doing, it’s a very small bit of air that’s
sitting just above that spinning drive platter where the head just kind of
floats there and is able to read the drive itself. So you’re dealing with
very precise (37)___, very precise technology. That’s why whenever you’re
working with a laptop or working with the computer you don’t want to (38)___
that computer around a lot because your head can hit up against the top of
that drive, on top of the platter, and really create problems. Notice there
are heads not only on the top, but there’re also heads and arms to go
underneath too so you can access multiple columns, multiple (39)___ we call
it, of the drive (40)___. Just a faster way to read data, if I have multiple
heads across multiple platters, is to read all at the same time and I can
access the data that much quicker. Whenever you start looking at the way the drive is laid out, you’re going to see
a lot of different names associated with the way the drive is (41)___. And
want I’m looking at here is a drive where I’m just drawing a line across the
drive to give you feel that these are the tracks within the drive itself.
Obviously the (42)___ are very small these are mini mini mini tracks on a single drive on a top of a
platter on a single side of a platter. And I’m just giving you an example
here of what the track mike look like. There are four tracks I’ve laid out here.
Obviously there are many many more ‘cause we’re dealing with very very small
(43)___.
Now if we look all the way through here if we were
to take a head and push it all the way through this or take that track and
see it all the way through this, each (44)___ that would be a cylinder. So
all of the arms within the hard drive are all around the same cylinder at the
same time. So if you need data from the top platter you’ve got to move the
arm over, but if you need data from another platter in another track the arm’s going to have to move back. And
so your hard drive has to keep track of where all the data is and know how to
(45)___ all of that. That’s really up
to the speed of that arm and the speed of that platter going back to (46)___
how quickly you can get to that data.
|
|
connected
|
|
flash
|
|
throughout
|
|
floppy disk
|
|
inch
|
|
megabytes
|
|
data
|
|
floppy
|
|
legacy
|
|
storage
|
|
requirements
|
|
store
|
|
factor
|
|
interfaces
|
|
size
|
|
kinds
|
|
fit
|
|
solid-state
|
|
meantime
|
|
available
|
|
motherboard
|
|
storing
|
|
swap
|
|
platters
|
|
vice versa
|
|
expensive
|
|
spinning
|
|
environment
|
|
back and forth
|
|
geometry
|
|
revolutions
|
|
spindle
|
|
actuator
|
|
reliable
|
|
accessing
|
|
arm
|
|
cylinders
|
|
close-up
|
|
tracks
|
|
amounts
|
|
jostle
|
|
simultaneously
|
|
configured
|
|
measurements
|
|
access
|
|
determine
|
|
platter
|
|
2 Vocabulary focus. Sudy the words and word combinations, practise
their translation, spelling. Check your knowledge
in the test. Play vocabulary game and set your own vocabulary game record.
3 Mark the following statements as True or False.
1.
FDDs are no longer widely used.
2.
FDDs have the capacity of 1.54 gigabytes.
3.
You can swap SATA drive for a PATA drive, they have
the same interface.
4.
Not every drive can fit into your computer as they are
all of different size.
5.
Hard drives are much faster than solid-state drives.
6.
Solid-state drives are expensive because you pay for
their physical measurements.
7.
Hard drives are like old record players, they consist
of platters that spin and arms that read data.
8.
It’s always better to buy an SSD drive.
9.
You can easily take the top off hard drive; it would not
influence the drive.
10. Revolutions per
minute are the speed at which you can access data.
11. If you hit or shake the hard drive while it’s
spinning, you may break it.
4 Answer the Questions.
1. What types of
storage devices do you know?
2. What types of hard
drives do you know? What are the differences between them?
3. What technology is
solid state drive based on?
4. What advantages and
disadvantages do hard drives and solid state drives have?
5. How does hard drive
work?
6. What does the speed
of data access depend on?
